logger.h File Reference

#include <stdbool.h>
#include <stdio.h>
#include <mcu-common/macros.h>
#include <mcu-common/fifo.h>

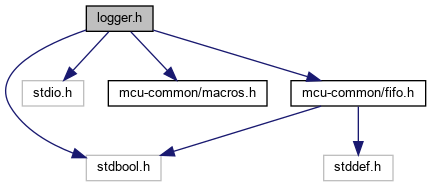

Include dependency graph for logger.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	logger_entry
	Logger entry (used internally) More...
struct	logger
	Logger instance. More...

Macros
#define	LOGGER_PUT_IMPL_N(n)   LOGGER_PUT_ARGC##n
#define	LOGGER_PUT_IMPL(log, argc, ...)    LOGGER_PUT_IMPL_N(argc)(log, __VA_ARGS__)
#define	LOGGER_PUT_ARGC1(log, fmt)    logger_put0((log), (fmt))
#define	LOGGER_PUT_ARGC2(log, fmt, a0)    logger_put1((log), (fmt), (int)(a0))
#define	LOGGER_PUT_ARGC3(log, fmt, a0, a1)    logger_put2((log), (fmt), (int)(a0), (int)(a1))
#define	LOGGER_PUT_ARGC4(log, fmt, a0, a1, a2)    logger_put3((log), (fmt), (int)(a0), (int)(a1), (int)(a2))
#define	LOGGER_PUT_ARGC5(log, fmt, a0, a1, a2, a3)    logger_put4((log), (fmt), (int)(a0), (int)(a1), (int)(a2), (int)(a3))
#define	LOGGER_PUT_ARGC6(log, fmt, a0, a1, a2, a3, a4)    logger_put5((log), (fmt), (int)(a0), (int)(a1), (int)(a2), (int)(a3), (int)(a4))
#define	LOGGER_PUT_ARGC7(log, fmt, a0, a1, a2, a3, a4, a5)    logger_put6((log), (fmt), (int)(a0), (int)(a1), (int)(a2), (int)(a3), (int)(a4), (int)(a5))
#define	LOGGER_MAX_ARGC   6
	The maximum number of logger_put() arguments supported by the implementation. More...
#define	LOGGER_INIT(log, log_write_cb, log_capacity, str_capacity)
	Initializes the logger instance and allocates its string and FIFO buffers. More...
#define	LOGGER_PUT(log, ...)    logger_put(log, VA_ARGC(__VA_ARGS__), __VA_ARGS__)
	Logs a message. More...

Functions
bool	logger_init (struct logger *log)
	Initializes logger. More...
bool	logger_put (const struct logger *log, int argc, const char *fmt,...)
	Logs a message (puts it into internal buffer for later processing). More...
bool	logger_process (const struct logger *log)
	Processes a single logged message from the buffer. More...
bool	logger_put0 (const struct logger *log, const char *fmt)
	Inserts a message to the logger. More...
bool	logger_put1 (const struct logger *log, const char *fmt, int arg0)
	Inserts a message to the logger. More...
bool	logger_put2 (const struct logger *log, const char *fmt, int arg0, int arg1)
	Inserts a message to the logger. More...
bool	logger_put3 (const struct logger *log, const char *fmt, int arg0, int arg1, int arg2)
	Inserts a message to the logger. More...
bool	logger_put4 (const struct logger *log, const char *fmt, int arg0, int arg1, int arg2, int arg3)
	Inserts a message to the logger. More...
bool	logger_put5 (const struct logger *log, const char *fmt, int arg0, int arg1, int arg2, int arg3, int arg4)
	Inserts a message to the logger. More...
bool	logger_put6 (const struct logger *log, const char *fmt, int arg0, int arg1, int arg2, int arg3, int arg4, int arg5)
	Inserts a message to the logger. More...

Macro Definition Documentation

LOGGER_PUT_IMPL_N

#define LOGGER_PUT_IMPL_N

(

n

)

LOGGER_PUT_ARGC##n

LOGGER_PUT_IMPL

#define LOGGER_PUT_IMPL	(		log,
			argc,
			...
	)		LOGGER_PUT_IMPL_N(argc)(log, __VA_ARGS__)

LOGGER_PUT_ARGC1

#define LOGGER_PUT_ARGC1	(		log,
			fmt
	)		logger_put0((log), (fmt))

LOGGER_PUT_ARGC2

#define LOGGER_PUT_ARGC2	(		log,
			fmt,
			a0
	)		logger_put1((log), (fmt), (int)(a0))

LOGGER_PUT_ARGC3

#define LOGGER_PUT_ARGC3	(		log,
			fmt,
			a0,
			a1
	)		logger_put2((log), (fmt), (int)(a0), (int)(a1))

LOGGER_PUT_ARGC4

#define LOGGER_PUT_ARGC4	(		log,
			fmt,
			a0,
			a1,
			a2
	)		logger_put3((log), (fmt), (int)(a0), (int)(a1), (int)(a2))

LOGGER_PUT_ARGC5

#define LOGGER_PUT_ARGC5	(		log,
			fmt,
			a0,
			a1,
			a2,
			a3
	)		logger_put4((log), (fmt), (int)(a0), (int)(a1), (int)(a2), (int)(a3))

LOGGER_PUT_ARGC6

#define LOGGER_PUT_ARGC6	(		log,
			fmt,
			a0,
			a1,
			a2,
			a3,
			a4
	)		logger_put5((log), (fmt), (int)(a0), (int)(a1), (int)(a2), (int)(a3), (int)(a4))

LOGGER_PUT_ARGC7

#define LOGGER_PUT_ARGC7	(		log,
			fmt,
			a0,
			a1,
			a2,
			a3,
			a4,
			a5
	)		logger_put6((log), (fmt), (int)(a0), (int)(a1), (int)(a2), (int)(a3), (int)(a4), (int)(a5))

Function Documentation

logger_put0()

bool logger_put0	(	const struct logger *	log,
		const char *	fmt
	)

Inserts a message to the logger.

Parameters

log	Pointer to the logger structure
fmt	Pointer to a formatted string (for sprintf)

Returns

true if message was put inserted successfully, false otherwise

logger_put1()

bool logger_put1	(	const struct logger *	log,
		const char *	fmt,
		int	arg0
	)

Inserts a message to the logger.

Parameters

log	Pointer to the logger structure
fmt	Pointer to a formatted string to be passed to sprintf
arg0	Argument to be passed to sprintf

Returns

true if message was put inserted successfully, false otherwise

logger_put2()

bool logger_put2	(	const struct logger *	log,
		const char *	fmt,
		int	arg0,
		int	arg1
	)

Inserts a message to the logger.

Parameters

log	Pointer to the logger structure
fmt	Pointer to a formatted string to be passed to sprintf
arg0,arg1	Arguments to be passed to sprintf

Returns

true if message was put inserted successfully, false otherwise

logger_put3()

bool logger_put3	(	const struct logger *	log,
		const char *	fmt,
		int	arg0,
		int	arg1,
		int	arg2
	)

Inserts a message to the logger.

Parameters

log	Pointer to the logger structure
fmt	Pointer to a formatted string to be passed to sprintf
arg0,arg1,arg2	Arguments to be passed to sprintf

Returns

true if message was put inserted successfully, false otherwise

logger_put4()

bool logger_put4	(	const struct logger *	log,
		const char *	fmt,
		int	arg0,
		int	arg1,
		int	arg2,
		int	arg3
	)

Inserts a message to the logger.

Parameters

log	Pointer to the logger structure
fmt	Pointer to a formatted string to be passed to sprintf
arg0,arg1,arg2,arg3	Arguments to be passed to sprintf

Returns

true if message was put inserted successfully, false otherwise

logger_put5()

bool logger_put5	(	const struct logger *	log,
		const char *	fmt,
		int	arg0,
		int	arg1,
		int	arg2,
		int	arg3,
		int	arg4
	)

Inserts a message to the logger.

Parameters

log	Pointer to the logger structure
fmt	Pointer to a formatted string to be passed to sprintf
arg0,arg1,arg2,arg3,arg4	Arguments to be passed to sprintf

Returns

true if message was put inserted successfully, false otherwise

logger_put6()

bool logger_put6	(	const struct logger *	log,
		const char *	fmt,
		int	arg0,
		int	arg1,
		int	arg2,
		int	arg3,
		int	arg4,
		int	arg5
	)

Inserts a message to the logger.

Parameters

log	Pointer to the logger structure
fmt	Pointer to a formatted string to be passed to sprintf
arg0,arg1,arg2,arg3,arg4,arg5	Arguments to be passed to sprintf

Returns

true if message was put inserted successfully, false otherwise
